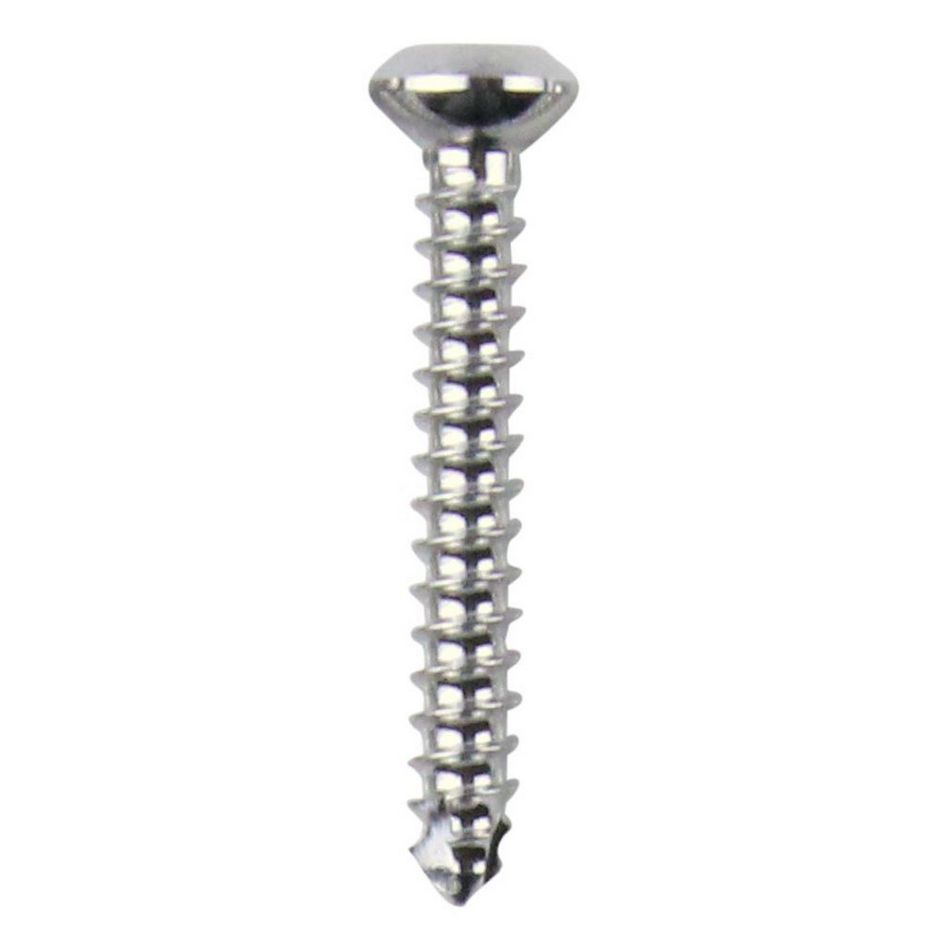

All of the screws are self-tapping (except for 5.5mm screws) which means that tapping may only be required in very hard bone. Self-tapping screws should always protrude 2-3mm from the trans-cortex to allow full engagement of the thread with the cortical bone. This must be taken into account when using the depth gauge. Screws with a star drive recess are very resistant to stripping. Diameter of Thread: 2.7mmThread Pitch: 1.0mmDiameter of Core: 1.9mmDiameter of Head: 5.0mmStardrive Recess: T8Threaded Hole: 2.0mmGliding Hole: 2.7mm
KOD160S
16mm
KOD140S
14mm
KOD180S
18mm
KOD260S
26mm
KOD280S
28mm
KOD300S
30mm
KOD360S
36mm
KOD340S
34mm
KOD380S
38mm
