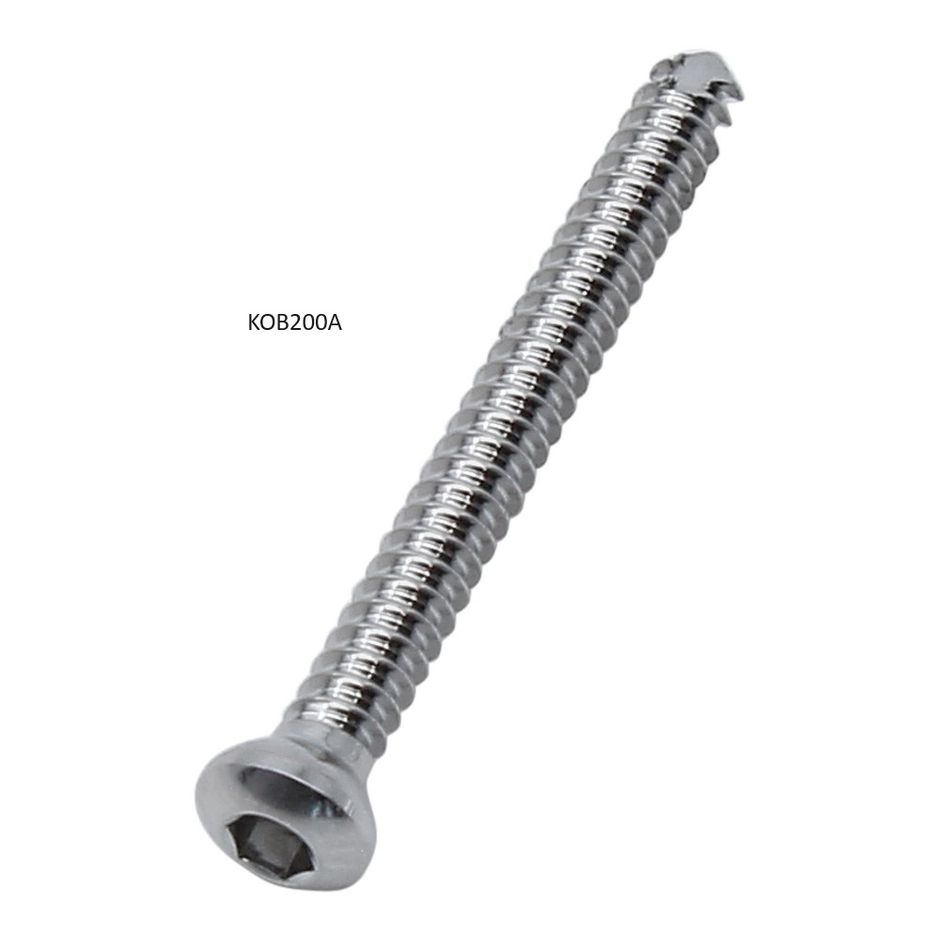

All of the screws are self-tapping (except for 5.5mm screws) which means that tapping may only be required in very hard bone. Self-tapping screws should always protrude 2-3mm from the trans-cortex to allow full engagement of the thread with the cortical bone. This must be taken into account when using the depth gauge. Screws with a star drive recess are very resistant to stripping. Diameter of Thread: 2.0mmThread Pitch: 0.6mmDiameter of Core: 1.4mmDiameter of Head: 3.3mmStardrive Recess: T6Thread Hole: 1.5mmGliding Hole: 2.0mm
KOB130S
13mm
KOB100S
10mm
KOB120S
12mm
KOB140S
14mm
KOB160S
16mm
KOB090S
9mm
KOB070S
7mm
KOB060S
6mm
KOB080S
8mm
KOB320S
32mm
KOB340S
34mm
KOB180S
18mm
KOB360S
36mm
KOB200S
20mm
KOB380S
38mm
KOB220S
22mm
KOB400S
40mm
KOB240S
24mm
KOB260S
26mm
KOB280S
28mm
KOB300S
30mm
