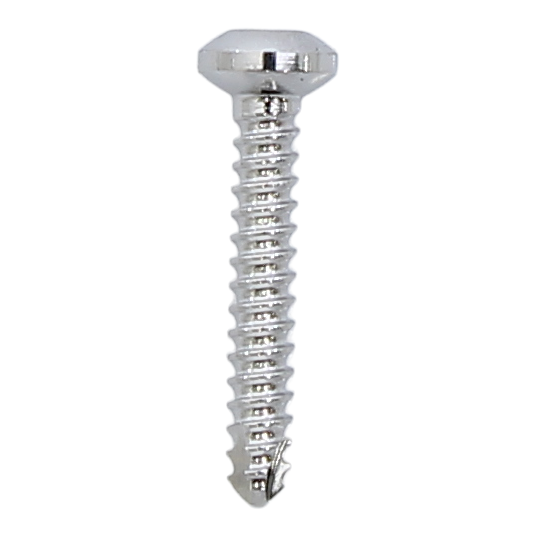

All of the screws are self-tapping (except for 5.5mm screws) which means that tapping may only be required in very hard bone. Self-tapping screws should always protrude 2-3mm from the trans-cortex to allow full engagement of the thread with the cortical bone. This must be taken into account when using the depth gauge. Screws with a star drive recess are very resistant to stripping. Diameter of Thread: 1.5 mmThread Pitch: 0.5 mmDiameter of Core: 1.1mmDiameter of Head: 3.0mmStardrive Recess: T4Thread Hole: 1.1 mmGliding Hole: 1.5 mm
KOA060S
6mm
KOA070S
7mm
KOA080S
8mm
KOA090S
9mm
KOA100S
10mm
KOA110S
11mm
KOA120S
12mm
KOA140S
14mm
KOA160S
16mm
KOA180S
18mm
KOA200S
20mm
KOA130S
13mm
KOA150S
15mm
KOA170S
17mm
KOA190S
19mm
